Top Notch Low Voltage Transformer for Landscape Lighting - Stainless Steel, Gleaming Finish, Heavy Duty, Mulit-tab (12v-15V), 120v 60” Cord Input/ Plugin
Top Notch Low Voltage Transformer for Landscape Lighting - Stainless Steel, Gleaming Finish, Heavy Duty, Mulit-tab (12v-15V), 120v 60” Cord Input/ Plugin
TopNotch™ The Shocker Low Voltage Transformer Step Down 110 to 12v,13V,14V,15V - Top Notch Landscape Lighting Top Notch Landscape Lighting 100W • 5.63"Lx10.5"Hx5"D / Timer
Top Notch Low Voltage Transformer for Landscape Lighting - Stainless Steel, Gleaming Finish, Heavy Duty, Mulit-tab (12v-15V), 120v 60” Cord Input/ Plugin
TopNotch™ The Shocker Low Voltage Transformer Step Down 110 to 12v,13V,14V,15V - Top Notch Landscape Lighting Top Notch Landscape Lighting 100W • 5.63"Lx10.5"Hx5"D / Photocell
Top Notch Low Voltage Transformer for Landscape Lighting - Stainless Steel, Gleaming Finish, Heavy Duty, Mulit-tab (12v-15V), 120v 60” Cord Input/ Plugin
TopNotch™ The Shocker Low Voltage Transformer Step Down 110 to 12v,13V,14V,15V - Top Notch Landscape Lighting Top Notch Landscape Lighting 100W • 5.63"Lx10.5"Hx5"D / Wifi (with App)

Top Notch Low Voltage Transformer for Landscape Lighting - Stainless Steel, Gleaming Finish, Heavy Duty, Mulit-tab (12v-15V), 120v 60” Cord Input/ Plugin

  • "Award Winning Customer Service"
Regular price$187.02
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon
  • Secure transaction
  • Fast & easy return's
  • Product support 24/7
  • Celebrating 25 years

Professional Grade - Non-Fluctuating Voltage Current, Clean Power, Energy-Efficient, Top Notch PremaX® Prevents Premature Lamp Burnout, a perfect choice for Professional Landscape Lighting systems

 Top Notch offers a universal open switching control architecture. Use any standard timer, photocell, manual switch or “smart home” device to control the transformer. The multi-tap feature allows the field installer to compensate for voltage loss from different cable run lengths, thereby balancing the system for high performance and maximum lamp life and performance.

Specifications:

Item

Low Voltage Transformer

Voltage Rating

10-18V

Primary Voltage

120v

Secondary Voltage

12V,13V,14V,15V

Power Rating

150,300,600,900 Watts

Housing Materials

Stainless Steel

Case Length

16.5” inch

Case Height

6.' Inch

Case Width

5.75/14.6' Inch

Regulated

No

Riser Height

1 in.

Warranty

Lifetime Warranty

Integrated/Drop-in

Drop-In

Terminal Wire Rating

Up to 10-gauge wire

Circuit Protection

Auto Thermal Shut-Off

Power Cord

60'Black-Cord/Plug

Certifications

ETL-Listed

Brand

Top Notch Landscape Lighting

MPN

TN-TR1-150SS-1



Features & Benefits:

  • A complete and reliable lighting solution.
  • 150W power generation capacity, which can further be utilized through multi-tap options in the 12v to 15v range. You can upscale or downscale the output according to the lighting requirements and the size of the area to be illuminated.
  • Overload Protection and Auto Thermal Shut-Off ensures minimal hazards no matter how long or how hard it’s used. It protects against voltage fluctuations and temperature rises. Secondary side magnet circuit breakers work well as an additional fail-safe and an extra layer of safety.

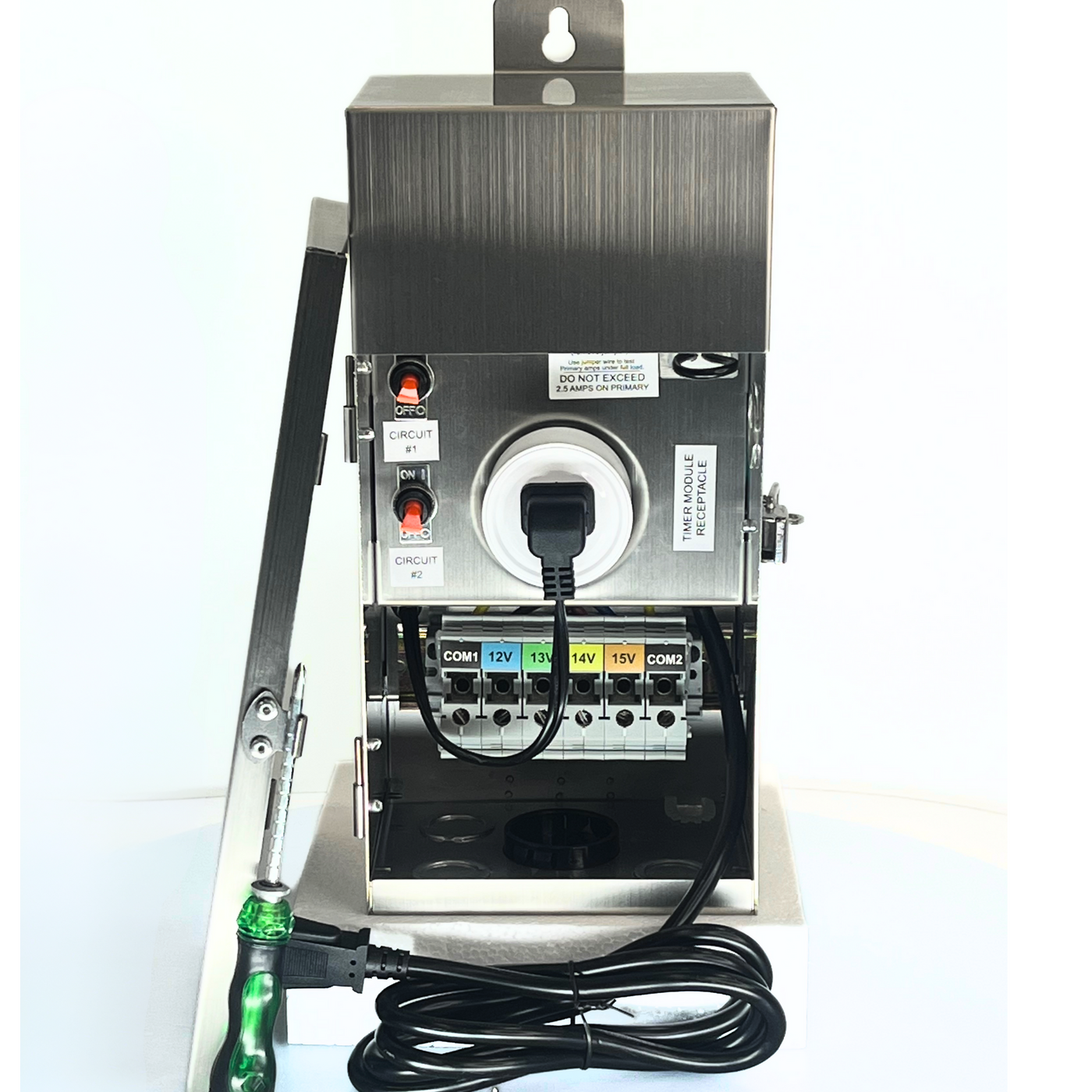

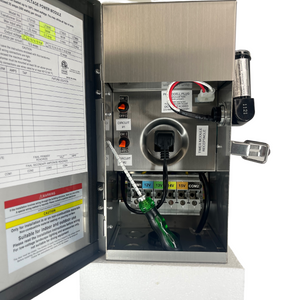

  • Encased in a stainless steel case with a removable and lockable door for easy access to circuit boards, along with a pre-punched 1.25' Conduit on the bottom panel.
  • A quick-mount bracket that is bundled with the transformers makes sure that the installation procedure is a breeze.
  • Compatible with all Top-Notch Light Fixtures, LED Lamps, and Photo-cells, as well as with other similar products on the market.

We have designed the The Shocker™ Outdoor LandscapeTransformer as a dependable solution to all your power generation requirements. It can generate a whopping 150W-900W of power in multi-tap options of 12v to 15v and comes encased in a premium-grade stainless steel case. The case itself comes with a removable, lockable door for easy access to the circuit boards.

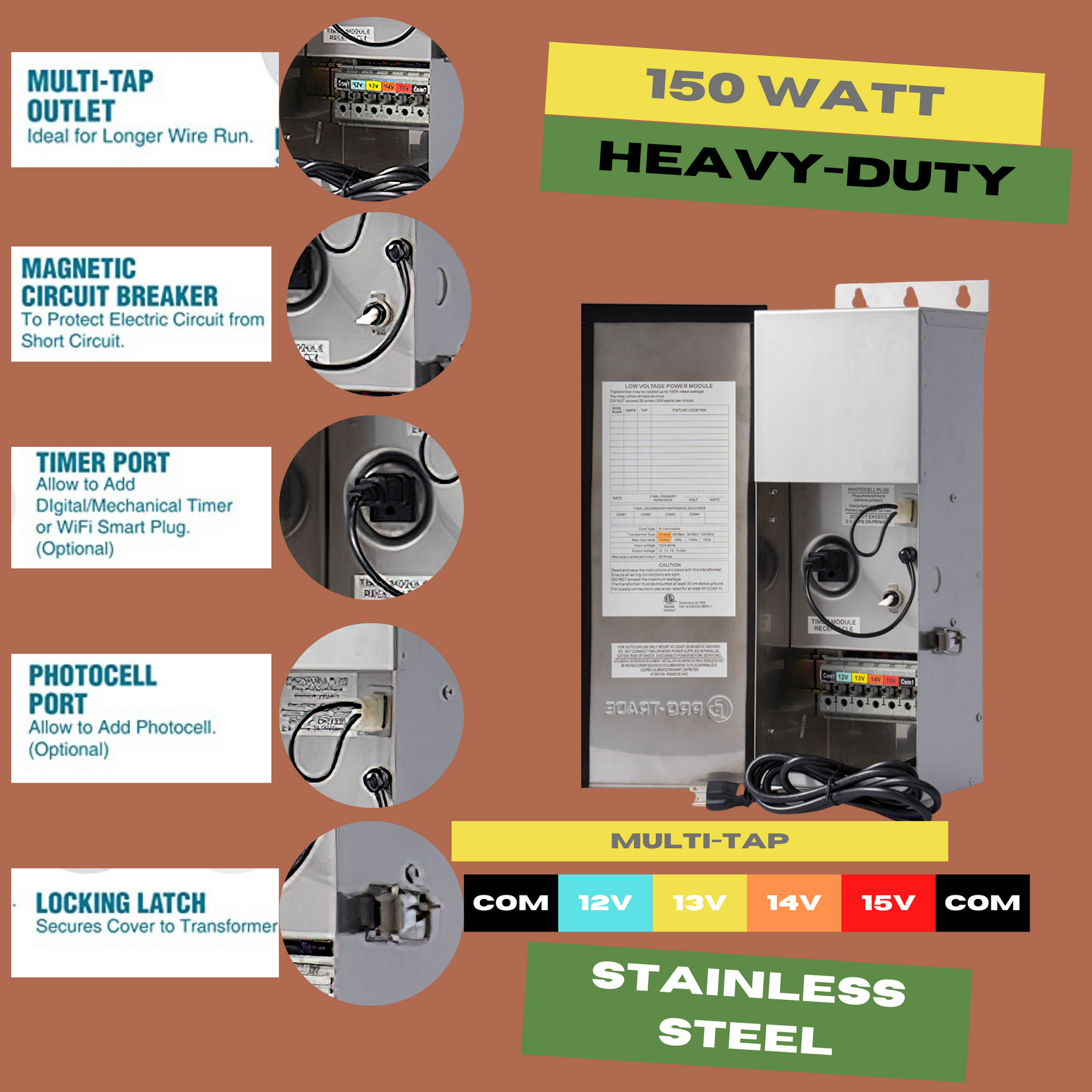

  • Stainless Steel Case
  • Removable, Lockable Door
  • Overload Protection with Auto Thermal Shut-Off
  • Secondary Side Magnetic Circuit Breakers
  • Pre-Punched Bottom Panel 1.25' Conduit
  • Plug-in Photocell Ready
  • Quick Mount Bracket

 The Shocker™ Landscape Transformer comes equipped with overload protection and automatically shuts off on increased thermal heat. A set of secondary side magnetic circuit breakers adds an extra layer of safety. A quick-mount bracket further enables an easy and effortless installation. These transformers are also ‘plug-in photocell ready’ for auto-on and auto-off depending on light conditions. Once installed, The Shocker™ Landscape Lighting Transformer will have your power generation requirements covered for a long time.
